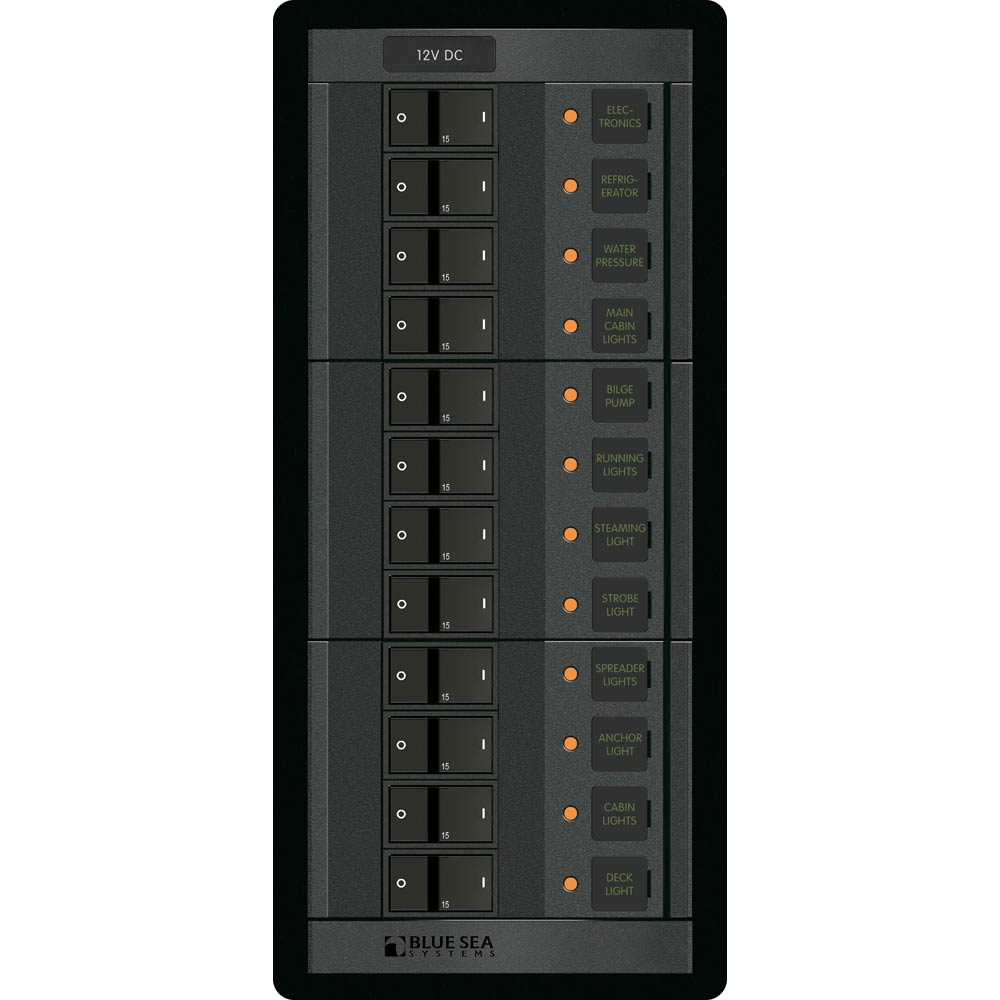

Blue Sea 1223 12V DC 12 Position

12 Volt DC 12 Position

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions:t12

• Nominal Voltage:t12V DC

• Maximum Amperage*:t100A per bus

• Height:t10.75" (273.05mm)

• Width:t4.88" (123.95mm)

• Depth:t3.00" (76.2mm)

• Weight:t4.85lb (2.2kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(12) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Box Dimensions: 5"H x 9"W x 12"L WT: 4.5 lbs
• UPC: 632085012236

Quick Guide (pdf)
Owner's Manual (pdf)
