Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control Deutsch Connector

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Features:

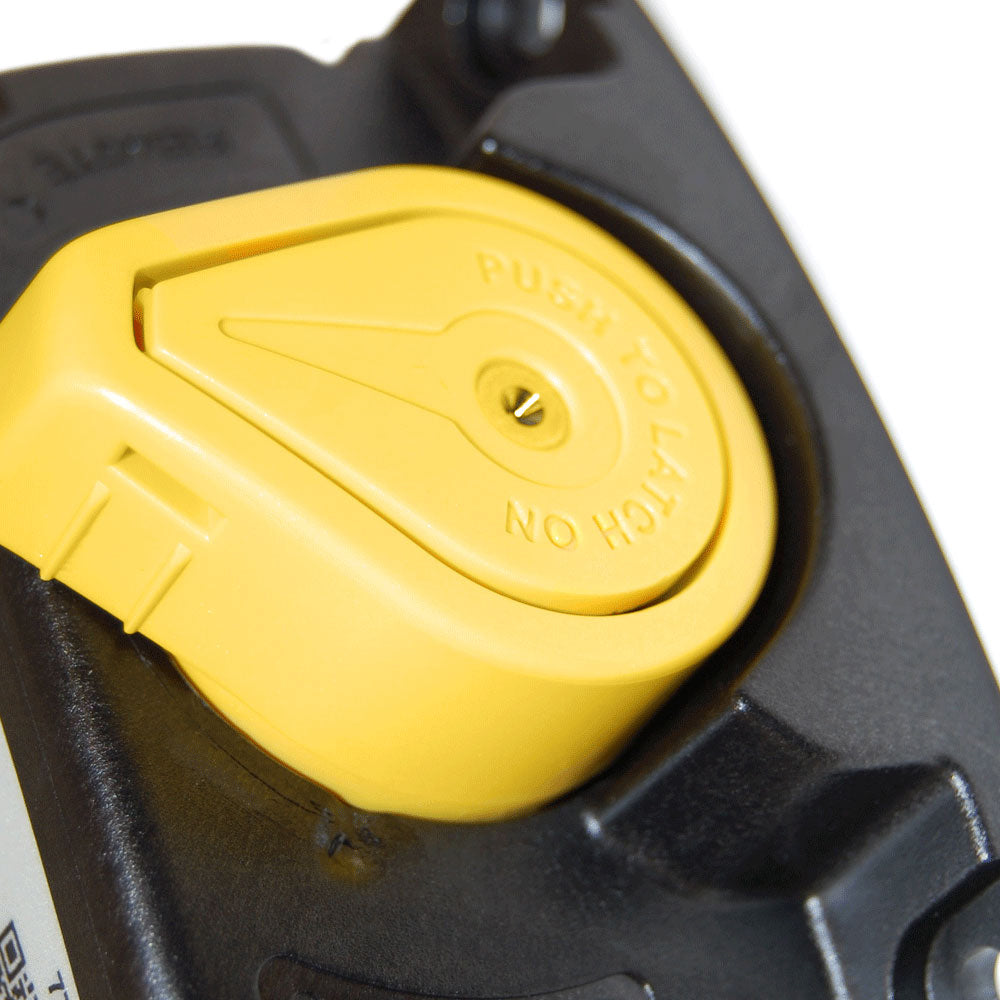

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0mA
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 Seconds: 1450A DC
• Cable Size to Meet Ratings: 2x (4/0)
• Live Current Switching: 300A@12VDC
• Master Control Switch Capability: No
• Mechanical Endurance: 100,000 Cycles
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)
